Main Features:
Phases: single phase
Output Power: 3.5kW
Power pins: 3 pcs(L1, N, PE)
Input Power: 110V-250V AC
Charging Current: 8A/10A/13A/16A adjustable
Signal pins: 2 pcs (CP, PD)
Signal current: 2A
Signal voltage: 30V AC
IP Rating: IP65
Operating tempeature: -25℃ to +55℃
Length: 5 meters or 3.5 Meters
Weight: 2.2kg/2kg
Mechanical life: plug in/out > 10000 times
Impact of external force: can afford 2m drop and 2t vehicle run over pressure
Insulation resistance: > 1000MD (DC500V)
Terminal temperature rise: < 50K
Housing Fire Rating:UL94V-0

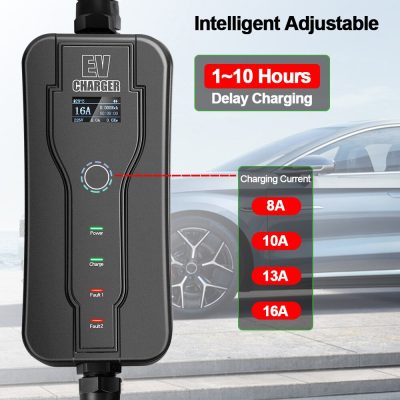

Control Box Function:
1. Leakage protection
2. Over-voltage or Low-voltage protection
3. Over-load protection
4. Lightning protection
5. Over-heat protection
6. Change current: 8A/10A/13A/16A
7.Timer Function: 1-10 Hours appointment charging

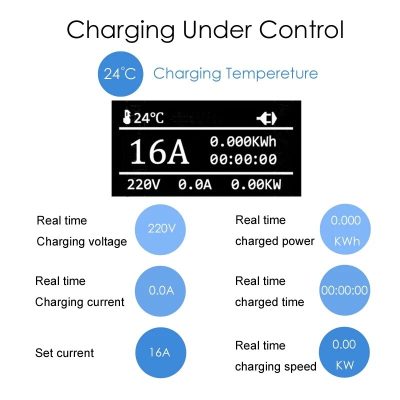

LED Display:
1. Charging Temperature
2. Charging Status
3. Set Current
4. Energy Charged in KW/h
5. Charged time
6. Charging Voltage
7. Charging Current
8. Charging Power
Method of use:

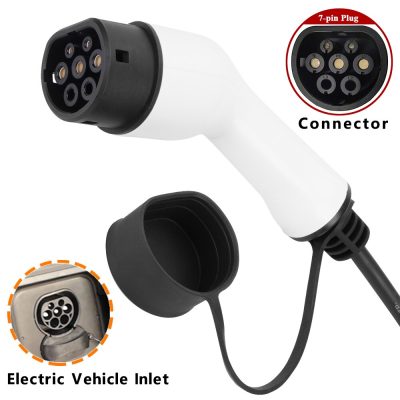

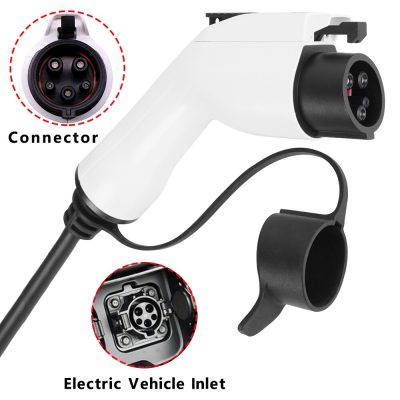

The round shape button “O” is for adjusting current. touch the button lightly to change the current. When you adjust the current, the power plug should be always connected,SAE J1772 Type 1 (IEC62196-2 Type 2) plug should be disconnected.
